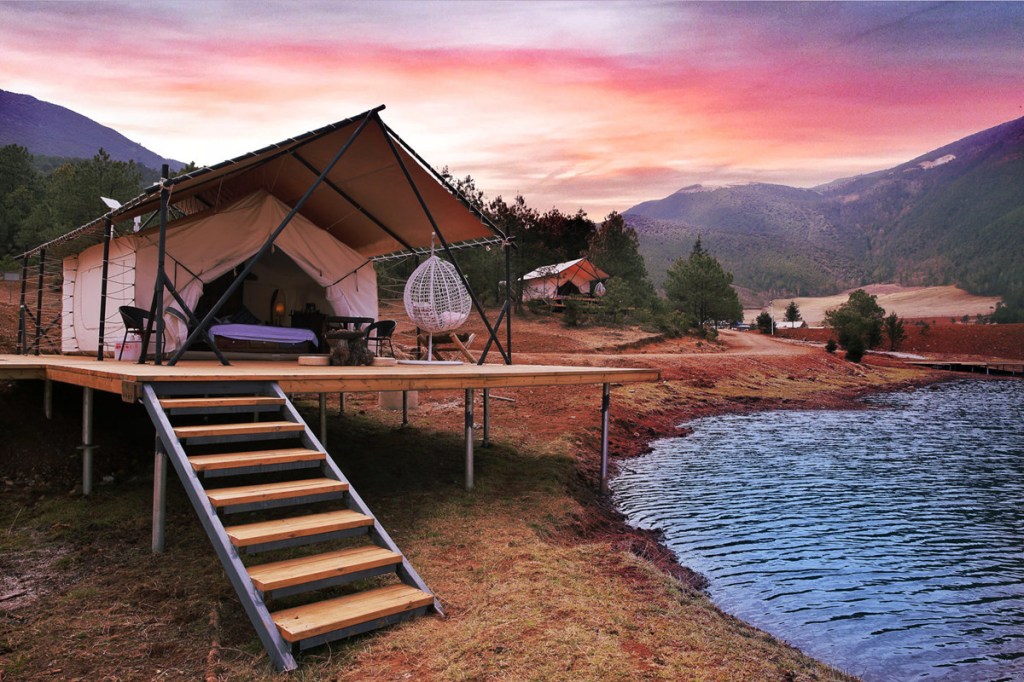

Support of temporary structures

High winds, heavy rain and other sever weather phenomena are no match for the performance of our helical piles and anchors. They ensure that temporary structures like tents, performance stages, site offices and other similar applications is solidly anchored and supported.

With no dry time, assembly and installation of the temporary structures can commence immediately. An added benefit is that the helical piles can be removed easily to allow for decommissioning.

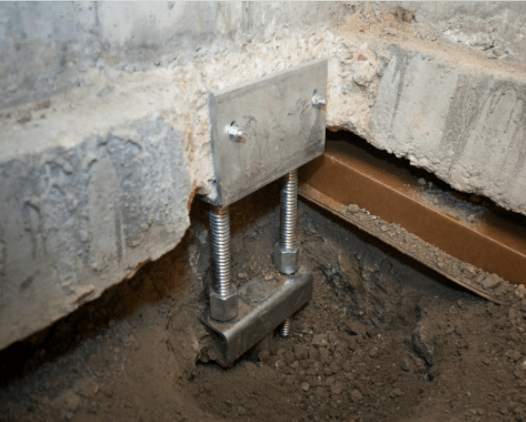

Support / lift existing foundations

A number of buildings are in distress due to settlement that has occurred underneath the foundations of the buildings. This might be the result of natural soil movement below the foundation, lack of sufficient provision for drainage adjacent the building or other cause.

Helical piles can effectively be used to support any type of structure that has undergone foundation settlement. Where the settlement of the buildings exceed the original design intentions, then the foundation of those buildings can be lifted to its original level and secured to the helical piles that have been installed to sufficient founding material.

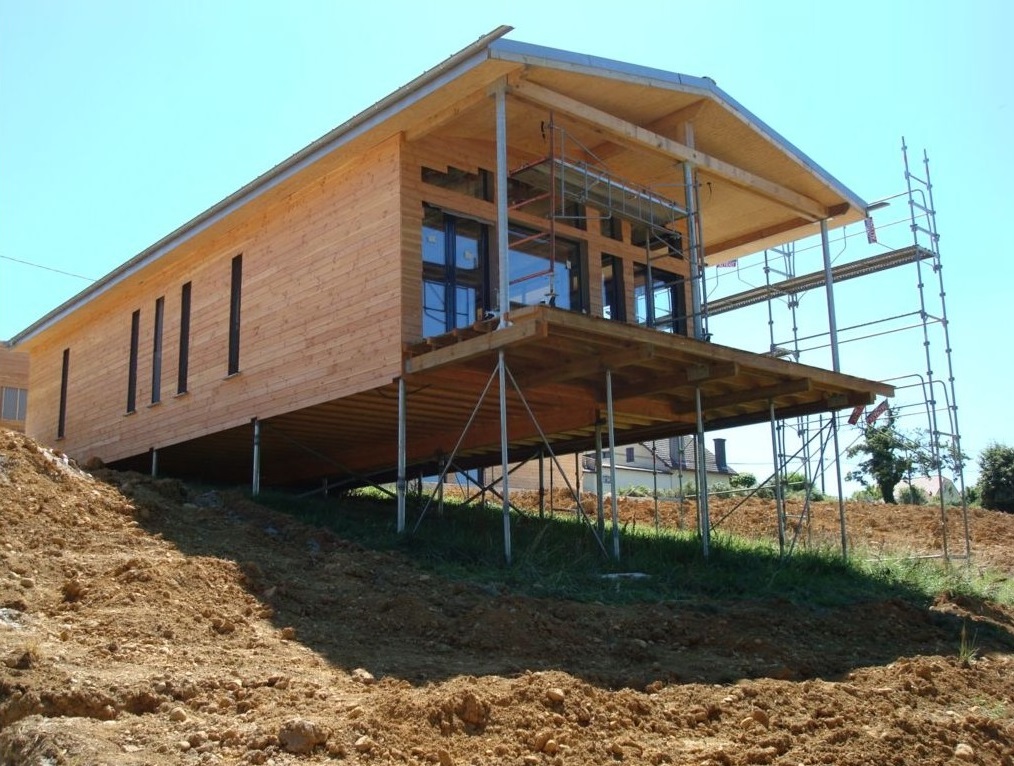

Support new foundations

In problematic soil conditions where dolomite or clay is present, helical piles can be a cost effective alternative to raft foundations for new construction. Our helical piles tie into and supporting the rebar grid prior to pouring concrete foundations. They are installed deep into stable soil – to support the structure, so that over time it will remain stable and resist foundation cracking.

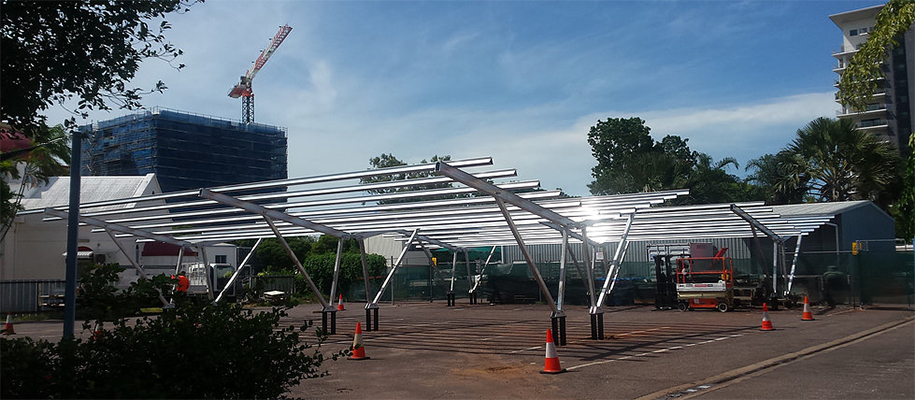

Support of carport structures

Many carports are added next to existing buildings long after those buildings were originally constructed. In most of these instances, the positions where these carports need to be located are usually over paved areas where the construction of a new foundation base for the vertical columns of the carports can be problematic.

The conventional construction can be time consuming and raining weather conditions could also delay things. Helical piles can effectively be installed through the pavement where the vertical posts for the carports can immediately be fixed to the newly installed helical piles without any delays.

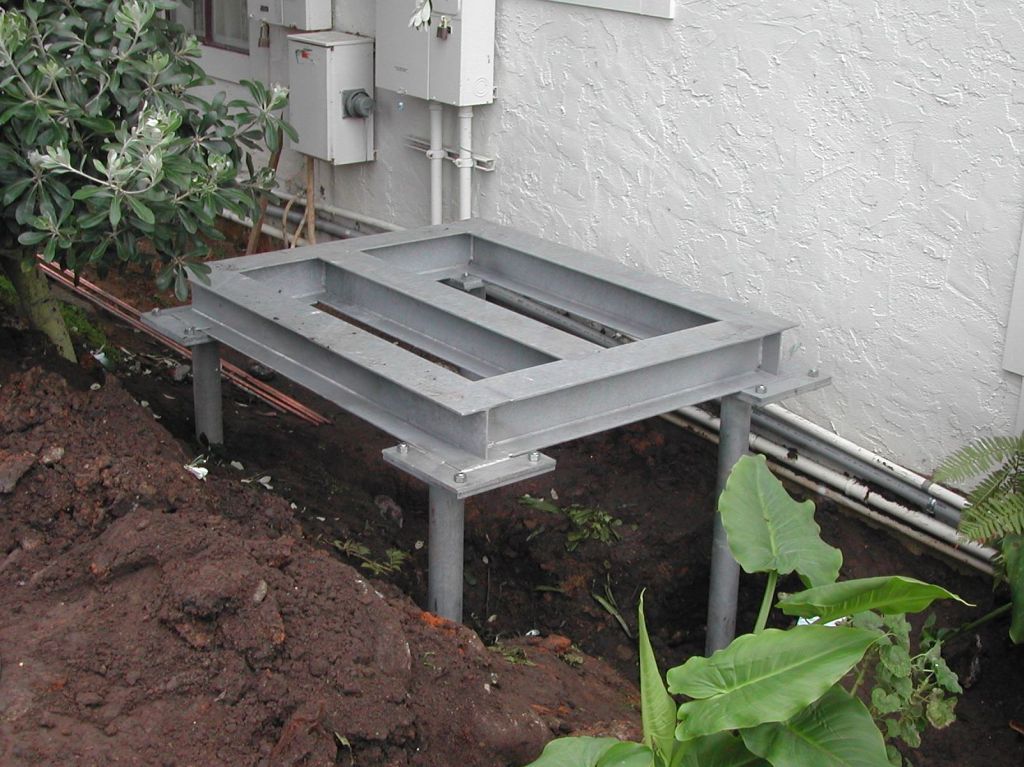

Support of additions to existing buildings

Many older buildings undergo retrofit for new use and in many instances additions need to be undertaken inside these buildings. Whether a new staircase needs to be installed or even an elevating lift or any other similar additions to the building, then helical piles are the answer to the foundations of these additions.

Helical piles can be installed in limited access areas inside buildings with lightweight equipment. The installation process of these piles is usually quit and vibration free and thus people whom are working close to the construction site will not be effected in terms of noise pollution during the installation of these piles.

Support of patios adjacent existing buildings

Many home owners make a decision to add a patio or similar structure as an addition to their existing house. Helical piles is a cost effective solution as deep foundation for these new additions. The main advantage being the speed of installation, installation in limited access areas and the fact that the top structure can immediately be constructed and fixed to the helical piles.

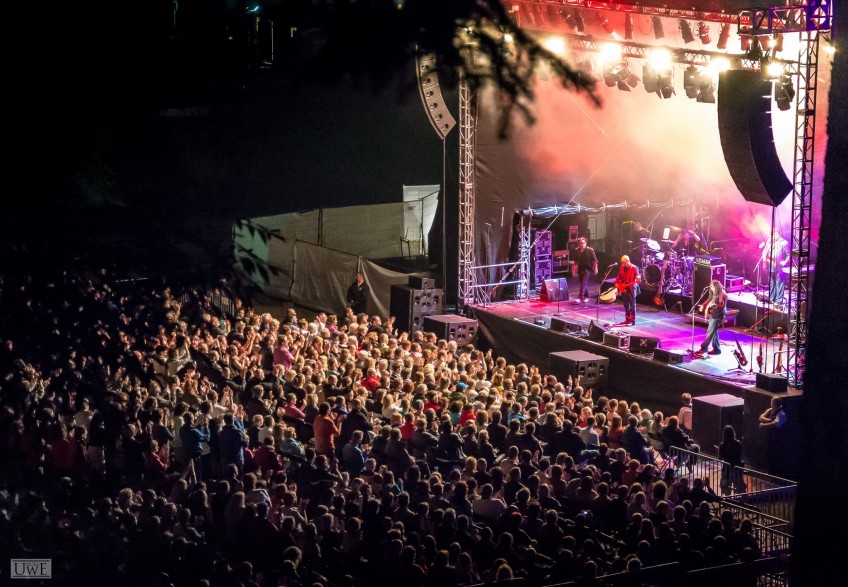

Support of temporary stages

Many outdoor music festivals and similar events take place on temporary stages. Some of these structures are heavy and need to have a suitable foundation. Helical anchors and piles can effectively be used to support and anchor these structures, especially in wind prone areas where uplift forces can negatively influence the overall stability of the structure. We will be able to install the anchors and piles products that is required for your project and then remove it afterwards during the decommissioning of the stage.
